Bushing Seals pack all the sealing power of a boot, but focus on the mounting hole as opposed to the switch itself.
Installed before a switch locking nut, the bushing seal fits snugly against either the front or back side of the mounting panel, sealing the mounting hole from any possible intrusion. Bushing Seals are small, inconspicuous and perfect for ready-sealed toggle, push button and rotary switches.
MATERIAL SPECIFICATIONS
For APM Hexseal® Standard Bushing Seals
- Elastomer:
- Silicone conforms to A-A-59588, Class 3A, GR50 †, Gray ‡
- Mounting Nut:
- 18/8 Stainless Steel
- Temperature Range:
- -103° F to +400° F ( -75° C to +204° C)
- Resistant to:
- Splash, salt spray, sunlight, ozone, weather, fungus, dust, and most acids and lubricating oils.
- Shelf Life:
- Excess of 25 years.
† Durometer options available. Please contact APM Hexseal® for details.

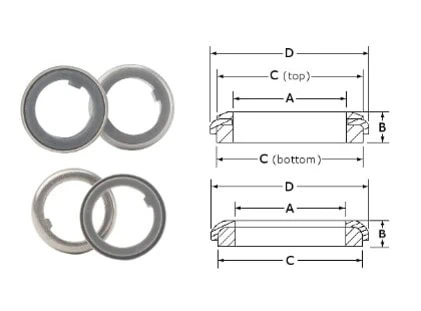

| APM Hexseal Part # | Military Part # | Bushing Size (A) | Height (B) | Seal Diameter (C) | Outer Diameter (D) | Seal Style | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| 60064 | M5423/17-01 | 0.469" | 11.91mm | 0.120" | 3.03mm | Top: 0.610" Bottom: 0.610" | Top: 15.49 mm Bottom: 15.49 mm | 0.662" | 16.81mm | Double-Side Seal |
| 60065 | - | 0.375" | 9.53mm | 0.120" | 3.03mm | Top: 0.500" Bottom: 0.522" | Top: 12.70 mm Bottom: 13.26 mm | 0.572" | 14.53mm | Double-Side Seal |
| 60225 | M5423/16-01 | 0.469" | 11.91mm | 0.120" | 3.03mm | 0.610" | 15.49mm | 0.662" | 16.81mm | Single-Side Seal |
For a full list of part numbers, please contact APM Hexseal.
MATERIAL SPECIFICATIONS
For APM Hexseal® Standard Bushing Seals
- Elastomer:
- Silicone conforms to A-A-59588, Class 3A, GR50 †, Gray ‡
- Mounting Nut:
- 18/8 Stainless Steel
- Temperature Range:
- -103° F to +400° F ( -75° C to +204° C)
- Resistant to:
- Splash, salt spray, sunlight, ozone, weather, fungus, dust, and most acids and lubricating oils.
- Shelf Life:
- Excess of 25 years.
† Durometer options available. Please contact APM Hexseal® for details.
| APM Hexseal Part # | Military Part # | Bushing Size (A) | Height (B) | Seal Diameter (C) | Outer Diameter (D) | Seal Style | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| 60064 | M5423/17-01 | 0.469" | 11.91mm | 0.120" | 3.03mm | Top: 0.610" Bottom: 0.610" | Top: 15.49 mm Bottom: 15.49 mm | 0.662" | 16.81mm | Double-Side Seal |
| 60065 | - | 0.375" | 9.53mm | 0.120" | 3.03mm | Top: 0.500" Bottom: 0.522" | Top: 12.70 mm Bottom: 13.26 mm | 0.572" | 14.53mm | Double-Side Seal |
| 60225 | M5423/16-01 | 0.469" | 11.91mm | 0.120" | 3.03mm | 0.610" | 15.49mm | 0.662" | 16.81mm | Single-Side Seal |
For a full list of part numbers, please contact APM Hexseal.
